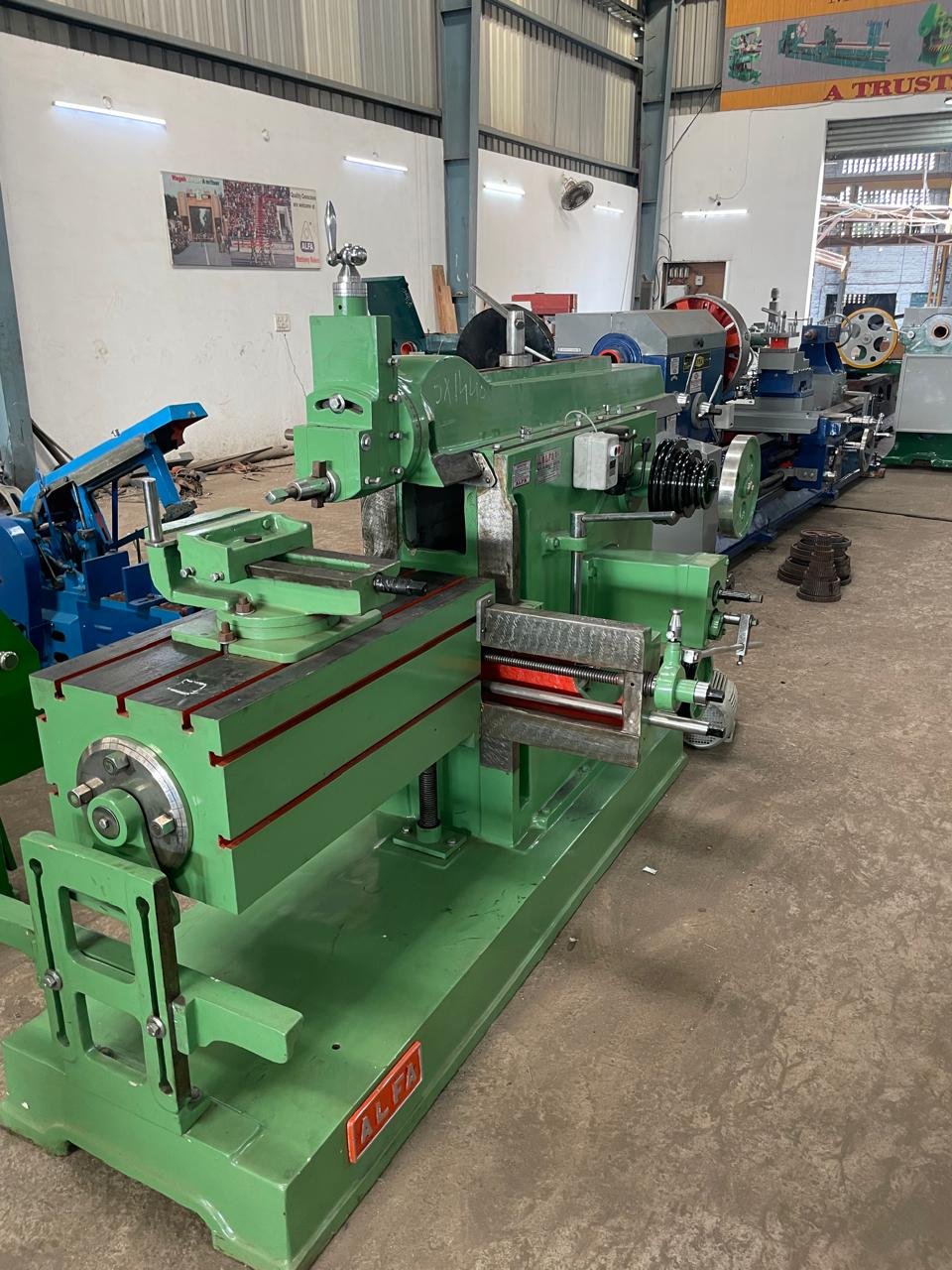

All Geared Shaping Machine
All Geared Shaping Machine - Image 2

All Geared Shaping Machine

Category:

Description

Standard Equipments

  • Auto Lubrication System
  • Vice
  • Handle
  • Motor
  • Machine Vice
  • Instruction Manual
  • Automatic Oil Lubrication
  • Electric Motor & Control

Extra Equipments

  • Auto Vertical Feed to Cross slide
  • Keyway Cutting Attachment
  • Automatic tool lifing Arrangement
  • Automatic Tool Lifting
  • Automatic Down Feed to the tool slide
  • Key Way Cutting Attachment
  • Grinding Attachment
  • Vertical Milling Head
Technical Specifications
305 mm 12″
Inches		 457 mm 18″,
Inches		 630 mm 24″
Inches		 762 mm 30″
Inches		 815 mm 32″
Inches		 915 mm 36″
Inches
Capacity
Length of Ram stroke 305 12 457 18 630 24 762 30 815 32 915 36
Length Of Ram 660 26 990 39 1219 48 1378 54 ¼ 1610 63 ¼ 1690 66 ½
Length & width of Ram bearing 660 x 178 26 x 7 762 x 267 30 x 10 ½ 914 x 279 36 x 11 1040 x 279 41 x 11 1135 x 305 44 ½  x 12 1160 x 305 45 ½ x 12
Max. & Minimum distance from table to Ram 257 x 41 10.1/8 x 1.5/8 407 x 89 16 x 3  ½ 457 x 89 18 x 3 ½ 508 x 114 20 x 4 ½ 500 x 140 19 ½ x 5 ½ 521 x 140 20 ½ x 5 ½
Table
Working surface of Table 305 x 228 12 x 9 407 x 292 16 x 11 ½ 483 x 330 19 x 13 610 x 362 24 x 14  ¼ 380 x 810 15 x 31 ¾ 457 x 315 18 x 36
Max. Table Travel – Horizontal 419 16 ½ 508 20 610 24 762 30 810 31 ¾ 870 34 ¼
Max. Table Travel – Vertical 140 5 ½ 330 13 375 14 ¾ 432 17 290 15 ¼ 390 15 ¼
Angular Movement of Table on either side 600L 600R 600L 600R 600L 600R 600L 600R 600L 600R 600L 600R 600L 600R 600L 600R 600L 600R 600L 600R Fixed Fixed
Tool Head
Maximum size of Tool Shank accommodated 16 x 22 5/8 x 7/8 32 x 16 1 ¼ x 5/8 51 x 21 2 x 13/16 51 x 21 2 x 7/8 38 x 21 1 ½ x 7/8 38 x 21 1 ½ x 7/8
Max. Vertical Travel of Tool Slide 140 5 ½ 150 6 150 6 150 6 180 7 200 7 ¾
Max. Swivel of Tool Head 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R 60L 60R
Speeds & Feeds
Range of Ram speeds (Stroke per minute) 3   30,60,90 3  30,60,90 4
17, 25,
50, 75		 4
17,25,
50,75		 4
12,24,
40,72		 4
12,24,
40,72		 4
10,24,
45,70		 4
10,24,
45,70		 4
12,25,
40,67		 4
12,25,
40,67		 4
12,25,
40,67		 4
12,25,
40,67
Range of  Table feed per stroke of  Ram 0.229 .009 0.229 .009 0.229 .009 0.229 to 0.6687 .009 to 0.027 0.229 to 0.687 .009 to 0.27 0.229 to 0.687 .009 to 0.27
Range of  Tool Head Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed Hand Feed
Electrical Equipments
3 Phase Electric Main Drive Motor 1.5 AMM 1.5 AMM 2 AMM 2 AMM 3 AMM 3 AMM. 5 AMM 5 AMM 5 AMM 5 AMM 5 AMM 5 AMM
Speed R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M. 960 R.P.M.
