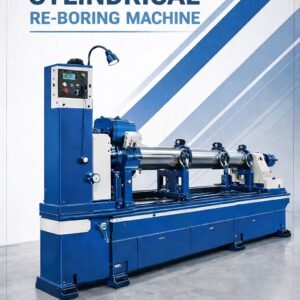

Cylindrical Re-Boring Machine

Alfa Machinery Maker is a leading manufacturer of high-quality Cylindrical Re-Boring Machines, available in a wide range of configurations. These machines are primarily used as metal cutting tools in machine shops for various applications, including Turret Lathes, Vertical Turret Lathes, engine lathes, and chuckers. Built using premium-grade raw materials, the machine ensures excellent efficiency, durability, and consistent performance, resulting in high-quality output for demanding industrial operations.

Description

Model		PCB 048	PCB 055	PCB 038(With Stand)	PCB 065
Uses		Motor Cycle	Motor Cycle	Moped	Heavy Car, Medium Compressor Diesel Vehicle
		Light Car	Light & Medium Car	Mtor Cycle CC	–
		Scooter	Scooter	–	–
		–	Three Wheeler Car	–	–
		–	Medium Duty Compressor	–	–
Boring Capacity	Range of Bore mm	48.0mm (1.900) 76mm~(3.000”)	53.5(2.100”) 90 (3.700”)	38.1 mm (1.500”) 60mm (2.350”)	66 mm (2.600”) 120 mm (5”)
Boring Capacity	Depth of bore mm	200 mm (8”)	245 mm (9.700”)	150 mm (6.000”)	300 mm (12”)
Spindle Speed (50 Cycle)	High RMP	420~	420~	460	225 RMP
Spindle Speed (50 Cycle)	Low RMP	345~	345~	–	142 RMP
Rate of Cut	High mm/min.	42(1.65”)~	42(1.65”)~	–	43 mm/Min
Rate of Cut	Low mm/min.	35(1.38”)~	35(1.38”)~	–	27 mm/Min
Rate of Feed mm		0.09~	0.09~	0.09~	0.09
Max depth of cut mm (at Low Speed)		1(0.040”)~	1(0.040”)~	0.8 (0.030”)	1.0mm(0.040”)
Motor		Single Phase 1/3 HP	Single Phase 1/3 HP	Single Phase 1/3 HP	Single Phase 1HP / Three Phase 1HP
		Single Phase 1/3 HP 200v220v	Single Phase 1/3 HP 200v220v	Three Phase 1/3 HP	–
Net Weight (Tool Box not included ) kg. Approx		63.5	63.5	–	–
