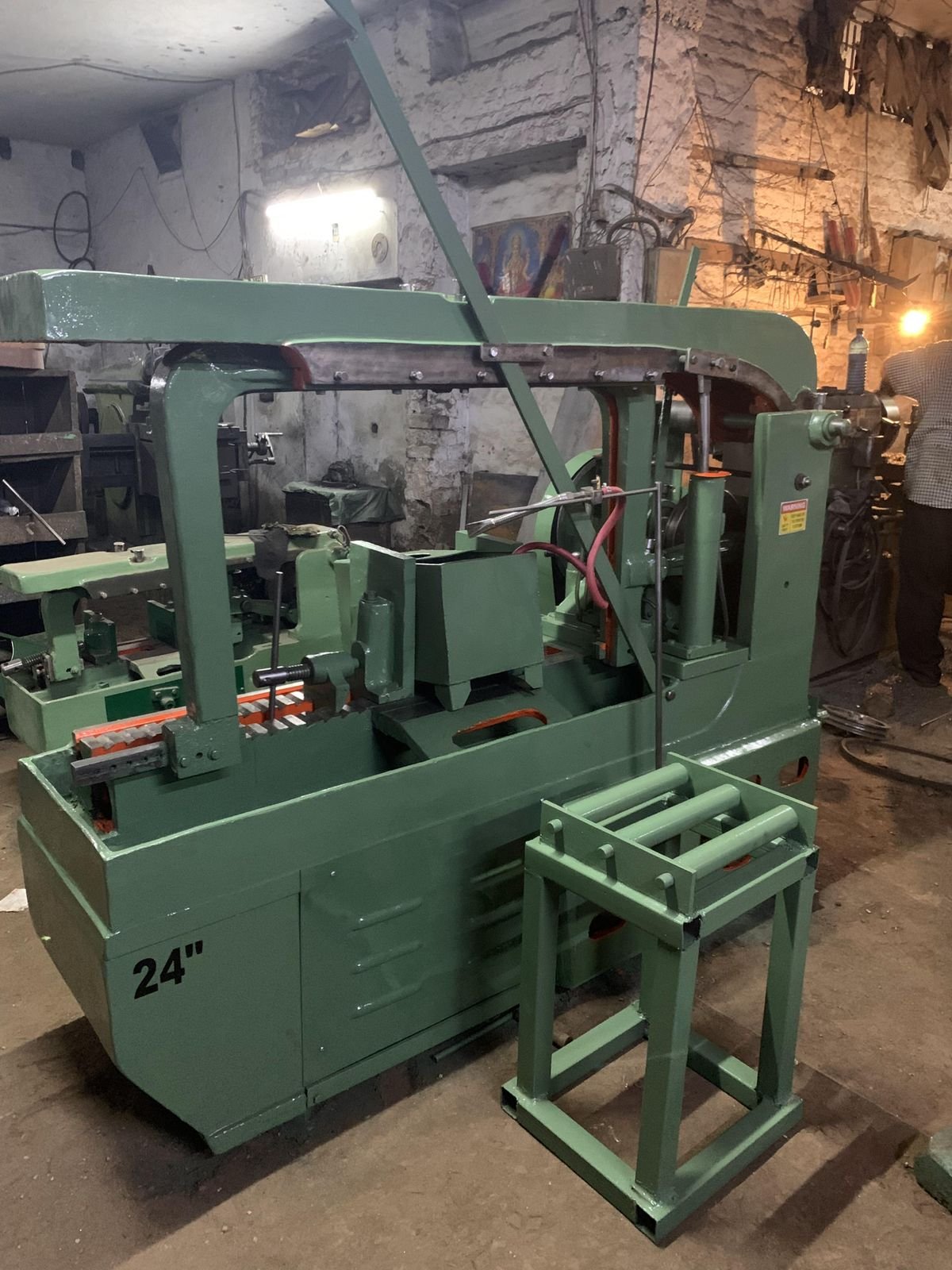

Description
Features
- Sturdy & Elegant Design of Machine Body
- Endless Circular 0.9 mm Blade, So It has Less Material Wastage
- Blade has Circular Movement & Moves in one Direction only
- In one Cycle Time. The Blade has Continuous Cutting & No Idil time
- Less Power Consumption Due to Continuous Cuttting
- Optimum use of Bandsaw Blade
- Arm has Swing Type Action for smoother & faster cutting of larger section
- Good Parallelism in cutting due to vertical & hotizontal adjustable blade guide with roller bearings and carbide wear pads
- Easy precise & adjustable gravity feeding control through hydraulic cylinder
- Has Heavy Duty Worm Reduction Drive (Gear Box)
- Efficient Self Centering Vice for job clamping
- Optional Swivel Vice for Angular Cutting
- Chemical Resistant
- Each & Every part of the machine is easily repairable & replaceablen
Standard Features
- Drive Motor, Coolant Pump
- V-belt with worm & Motor Pulley
- Carbon Steel Blade
- Friction Type Chip Removal Wire Brush
- Chip Collection Tray
- Contactor & Push Buttons
- Job Stopper Assembly
- Oil Filled Worm Reduction Gear box
- oil filled hydraulic cylinder
Optional Accessories
- Bimetal / Carbon Steel Bandsaw Blade
- Job Roller Stand
- Swivel Vice for Angular Cutting
- One set of Tools with Toolbox
| Technical Specifications | |||||||||||
| Model | AMM-1 | AMM-1 H.S. | AMM-2 H.S. | AMM-3 H.S. | AMM-4 H.S. | AMM-5 H.S. | AMM-6 H.S. | ||||
| Round | mm | 175 | 175 | 250 | 300 | 350 | 400 | 450 | |||
| Square | mm | 150 x 150 | 150 x 150 | 200 x 200 | 250 x 250 | 300 x 300 | 350 x 350 | 400 x 400 | |||
| Drive | |||||||||||
| Drive motor | 0.5 H.P. 1440 RPM | 1 H.P. 1440 RPM | 1.5 H.P. 1440 RPM | 1.5 H.P. 1440 RPM | 2 H.P. 960 RPM | 2 H.P. 960 RPM | 2 H.P. 960 RPM | ||||
| Coolant pump | 0.15 H.P. 440 Volts | 0.15 H.P. 440 Volts | 0.15 H.P. 440 Volts | 0.15 H.P. 440 Volts | 0.15 H.P. 440 Volts | 0.15 H.P. 440 Volts | 0.15 H.P. 440 Volts | ||||
| Blade speed meterimin | 25 | 20 | 20 | 20 | 20 | 20 | 20 | ||||
| 30 | 35 | 35 | 35 | 35 | 35 | 35 | |||||
| 40 | 55 | 55 | 55 | 55 | 55 | 55 | |||||
| 75 | 75 | 75 | 75 | 75 | 75 | ||||||
| Machine Specification | |||||||||||
| Saw Blade Carbon/Bimetal | mm | 2540 x 20 x 0.9 | 3000 x 27 x 0.9 | 3200 x 27 x 0.9 | 3760 x 27 x 0.9 | 4100 x 27 x 0.9 | 4420 x 34 x 1.1 | 4570 x 34 x 1.1 | |||
| Floor space L x W x H | mm | 1500 x 570 x 870 | 1630 x 580 x 895 | 1850 x 700 x 1000 | 2400 x 830 x 1050 | 2550 x 830 x 1050 | 2650 x 830 x 1200 | 2800 x 830 x 1200 | |||
| Net Weight | kg. | 250 | 325 | 450 | 600 | 750 | 850 | 925 | |||
| Packed Weight | Kg. | 350 | 425 | 575 | 750 | 900 | 1000 | 1100 | |||
| approx | approx | approx | approx | approx | approx | approx | |||||
