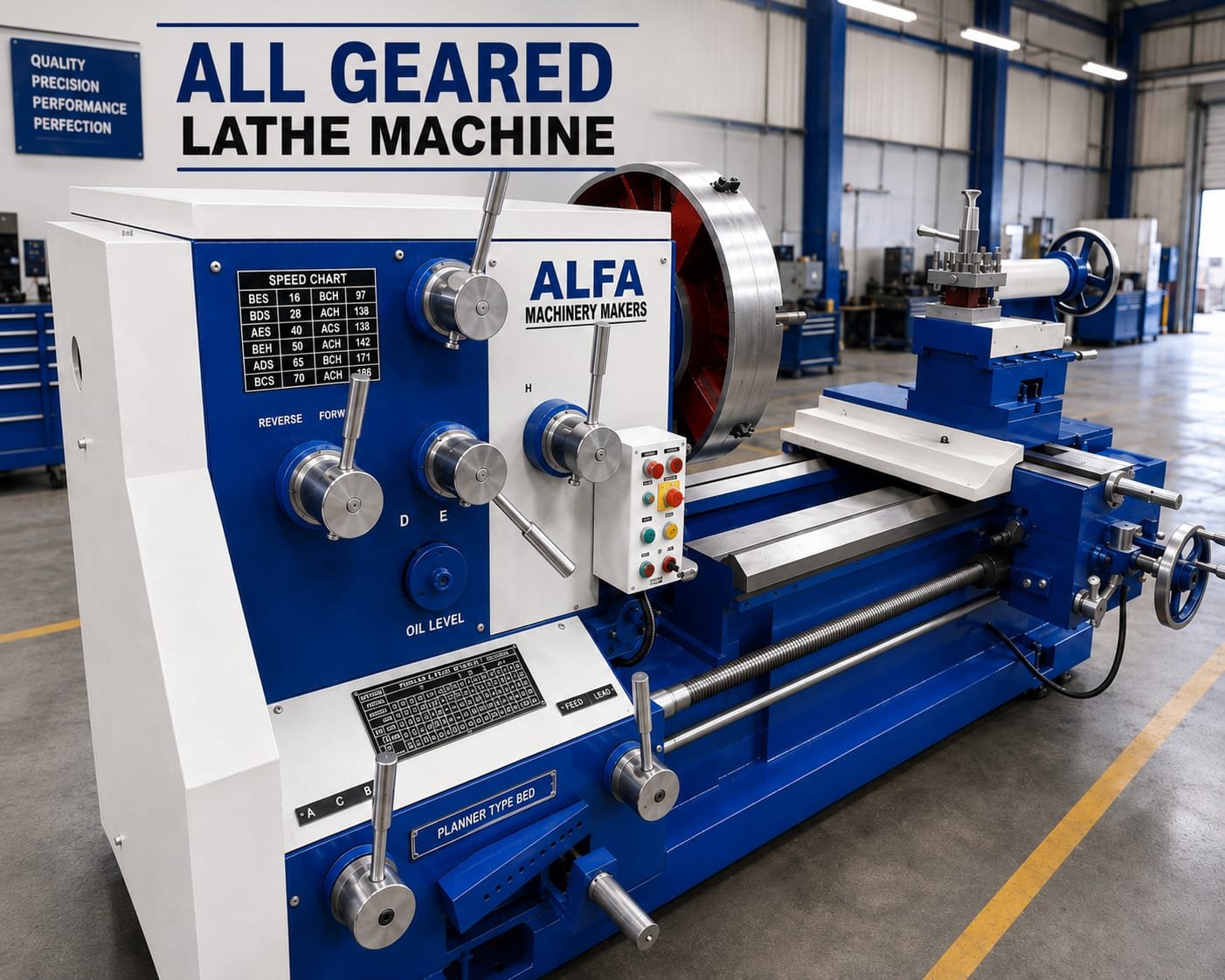

All Geared Lathe Machine

The All Geared Lathe Machine is a high-performance, heavy-duty precision lathe designed for demanding industrial machining applications. Equipped with a fully geared headstock, it provides high torque, smooth power transmission, and a wide range of spindle speeds without relying on belt drives. Built with a rigid cast iron bed and precision-ground guideways, this machine delivers exceptional accuracy, durability, and vibration-free performance. It is ideal for turning, facing, threading, boring, drilling, taper turning, grooving, and heavy metal cutting operations across various engineering industries.

Description

Specification	ALFA 200	ALFA 300	ALFA 400
CAPACITY
Height of Centre	200	300	400
Swing over Bed	400	600	800
Swing over Cross Slide	260	325	530
Swing in Gap	600	865	1200
Bed Width	315	375	460
Distance Between Centres	750 mm, 1000 mm, 1500 mm	1000 mm, 1500 mm, 2000 mm, 2500 mm, 3000 mm	1500 mm, 2000 mm, 2500 mm, 3000 mm, 3500 mm
HEAD STOCK
Main Spindle Speeds (Standard)	8 Nos.	8 Nos.	9 Nos.
Optional	16	16	18
Range of Spindle Speeds (RPM)	45–1000 RPM	30–720 RPM	30–720 RPM
Spindle Bore	52 mm	62 mm	90 mm
Spindle Length	3 MT	4 MT	5 MT
THREADS & FEEDS
Metric Threads	0.5–6 mm	1–14 mm	1–14 mm
Whitworth Threads	4–60 TPI	2–30 TPI	2–30 TPI
Thread of Lead Screw	4 TPI	2 TPI	2 TPI
Number of Feeds	30	30	30
TAILSTOCK
Tailstock Sleeve Taper	3 MT	4 MT	5 MT
Spindle Diameter	50 mm	62 mm	75 mm
Electricals	2 HP, 1440 RPM, 3 Phase	3 HP, 1440 RPM, 3 Phase	5 HP, 1440 RPM, 3 Phase
