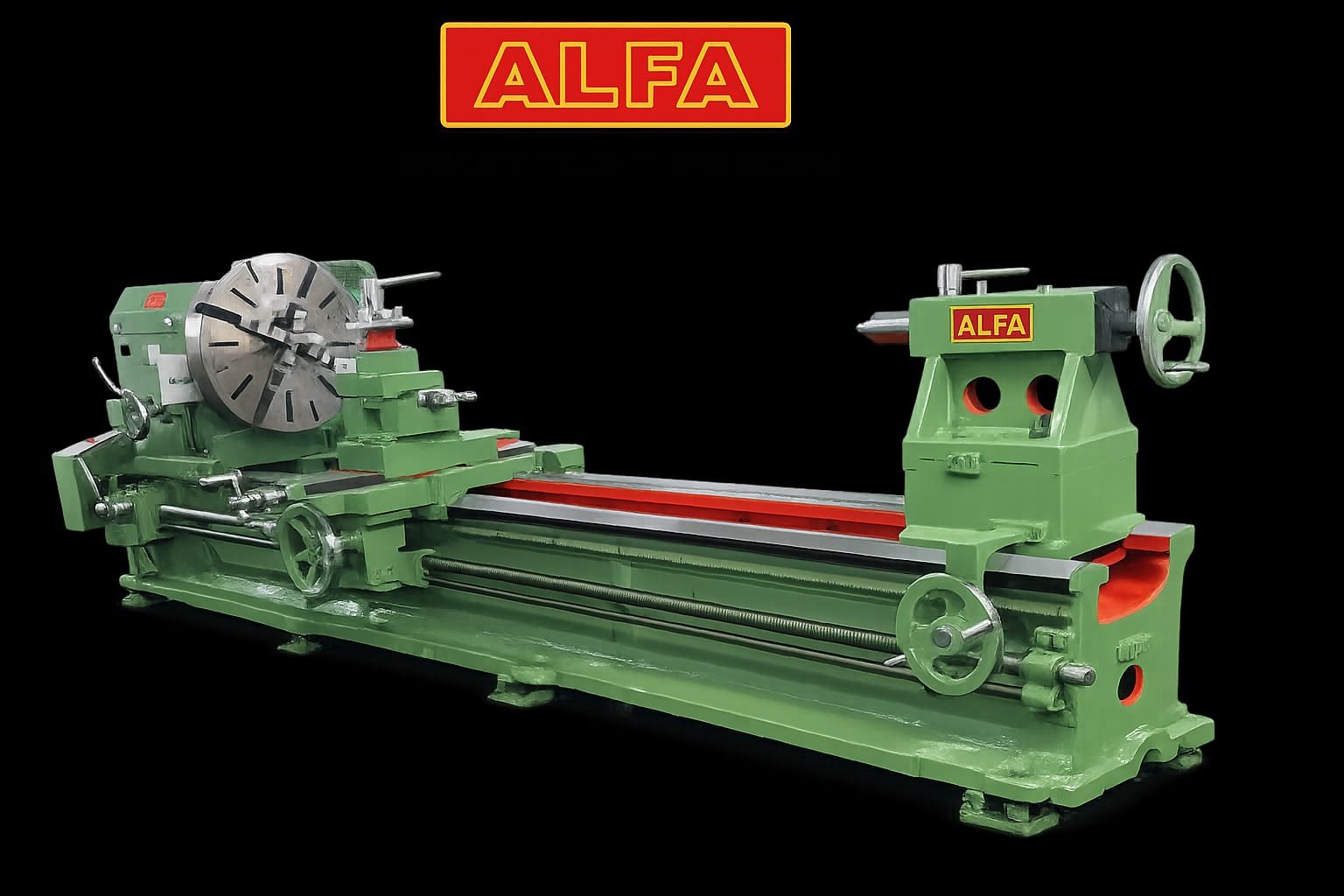

Roll Turning Lathe Machine

The Roll Turning Lathe Machine is a specially engineered heavy-duty lathe designed for machining large industrial rolls, shafts, cylinders, and heavy workpieces with exceptional precision. It is widely used in steel plants, paper mills, rubber industries, textile mills, power plants, cement plants, and roll manufacturing industries. The machine features a rigid cast iron bed, precision-ground guideways, and a powerful geared headstock, ensuring excellent stability, high load-bearing capacity, and superior machining accuracy. It is suitable for rough and finish turning, threading, facing, grooving, and taper turning of heavy rolls.

Description

Technical Specification	AMM-2230	AMM-2432	AMM-3036	AMM-3640	AMM-4048	AMM-4060
Bed Length	22 FT	24 FT	30 FT	36 FT	40 FT	40 FT
Width of Bed	30″ (750 MM)	32″ (800 MM)	36″ (900 MM)	40″ (1000 MM)	48″ (1200 MM)	60″ (1500 MM)
Height of Center	28″ (700 MM)	30″ (750 MM)	34″ (850 MM)	38″ (950 MM)	46″ (1150 MM)	55″ (1375 MM)
Spindle Bore	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)
Swing in Gap	80″ (2000 MM)	86″ (2150 MM)	92″ (2300 MM)	101″ (2525 MM)	116″ (2900 MM)	142″ (3550 MM)
Swing over Bed	56″ (1400 MM)	60″ (1500 MM)	68″ (1700 MM)	76″ (1900 MM)	92″ (2300 MM)	110″ (2750 MM)
No. of Spindle Speed	6	6	6	6	6	6
Admit Between Centre	192″ (4800 MM)	216″ (5400 MM)	282″ (7050 MM)	353″ (8825 MM)	400″ (10000 MM)	381″ (9525 MM)
Leading Screw Dia	2¾” (70 MM)	3″ (75 MM)	3″ (75 MM)	3½” (88 MM)	4½” (112 MM)	5″ (125 MM)
H.P Required	10 H.P	15 H.P	25 H.P	25 H.P	30 H.P	40 H.P
