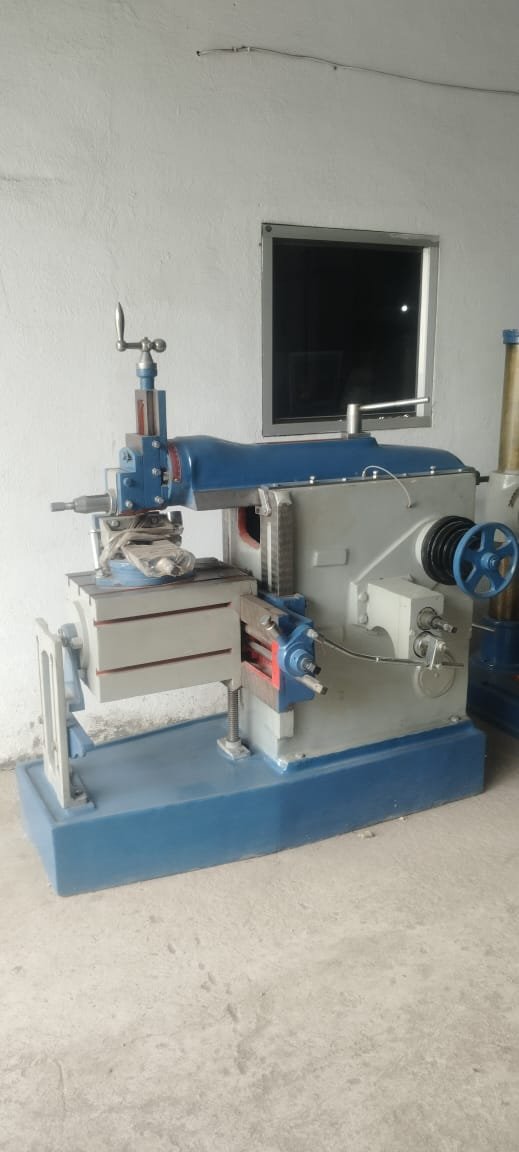

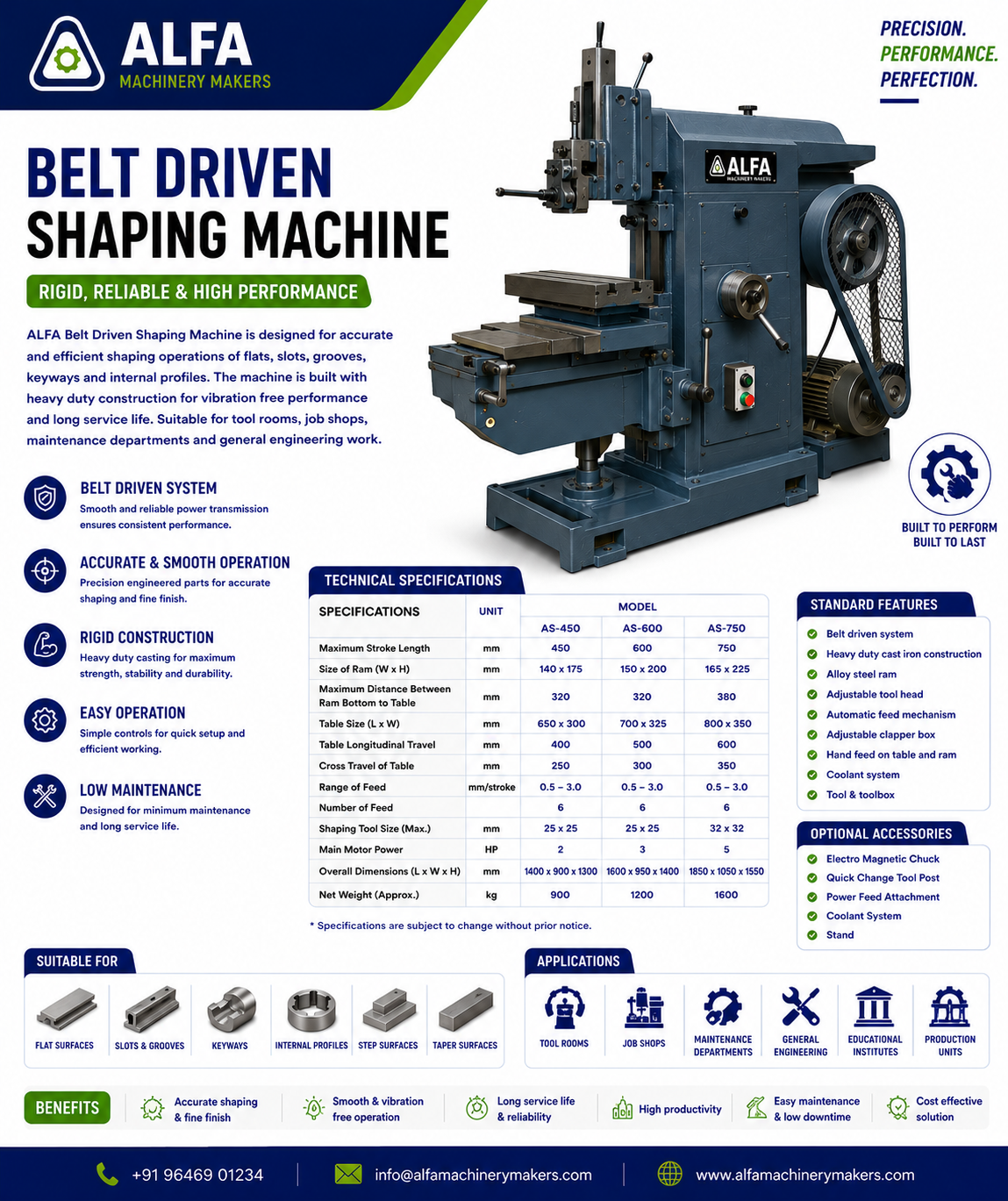

Belt Driven Shaping Machine

Description

PARTICULARS	305 mm	12″	457 mm	18″	630 mm	24″	762 mm	30″	815 mm	32″	915 mm	36″
Maximum Stroke	350	13.75	500	19.5	650	25.5	800	31.5	950	37.25	1050	41.25
Max. distance Table to Ram	300	11.75	385	15	460	18	510	20	550	21.5	600	23.5
Min. distance Table to Ram	40	1.5	40	1.5	50	2	50	2	75	3	75	3
Length & width of Table Top	300x 225	11.75x 8.75	460x 310	18x 12.25	610/360	24×4	760x 400	30x 15.75	910x 450	35.75x 17.75	1015x 500	40x 19.5
Length of Cross Slide	600	23.5	810	31.75	950	37.25	1000	39.25	1300	51.25	1375	54
Max. Travel of Tools Slides	130	5	160	6.25	190	7.5	200	7	210	8.25	240	9.25
Max Swivel of Tool Head	60^oL 60^o R	60^oL 60^o R	60^oL 60^o R	60^oL 60^o R	60^oL 60^o R	60^oL 60^o R	60^oL 60^o R	60^oL 60^o R	60^oL 60^o R	60^oL 0^o R	60^oL 60^o R	60^oL 60^o R
Max. Size of Tool Shank	16Lx 16R	0.6Lx 0.6R	25Lx 25R	1Lx 1R	25Lx 25R	1Lx 1R	25Lx 25R	1Lx 1R	36Lx 36R	1.4Lx 1.4R	40Lx 40R	1.5Lx 1.5R
Ram Speed	3	3	3	3	4	4	4	4	4	4	4	4
Table feeds in horizontal direction	3	3	3	3	3	3	3	3	3	3	3	3
Range of Table feed in horizontal direction	0.2 to 0.6	0.0078 to 0.0023	0.2 to 0.6	0.0078 to 0.0023	0.2 to 0.6	0.0078 to 0.0023	0.2 to 0.6	0.0078 to 0.0023	0.2 to 0.6	0.0078 to 0.0023	0.2 to 0.6	0.0078 to 0.0023
Floor space required	1250x 1000	49.25x 39.25	1450x 1200	57x 47.25	1720x 1300	67.75x 51	1900x 1350	74.75x 53	2100x 1550	82.5x 61	2250x 1700	88.5x 67
Appx. Weaight of the machine(kgs)	800	800	1200	1200	1900	1900	2200	2200	2700	2700	3500	3500
Main Drive Motor	1	1	2	2	3	3	3	3	5	5	5	5
