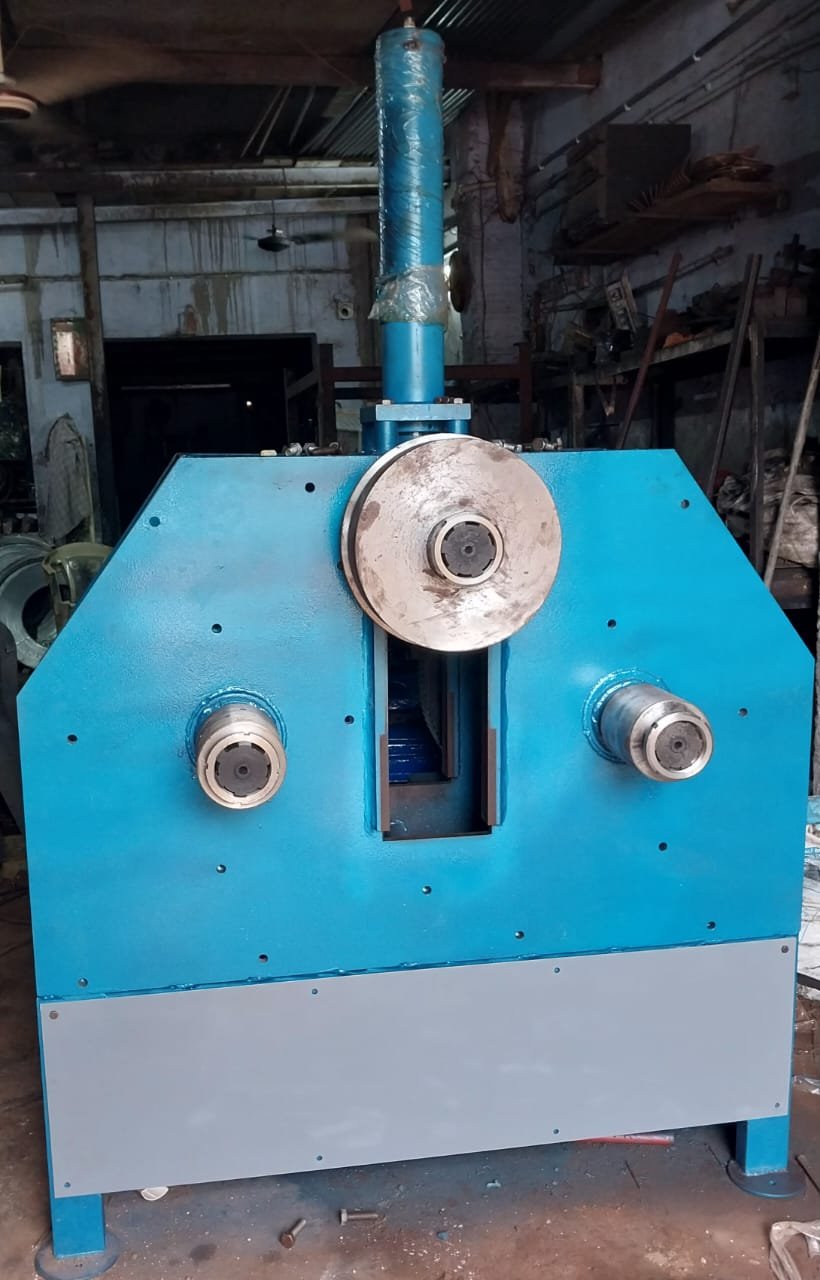

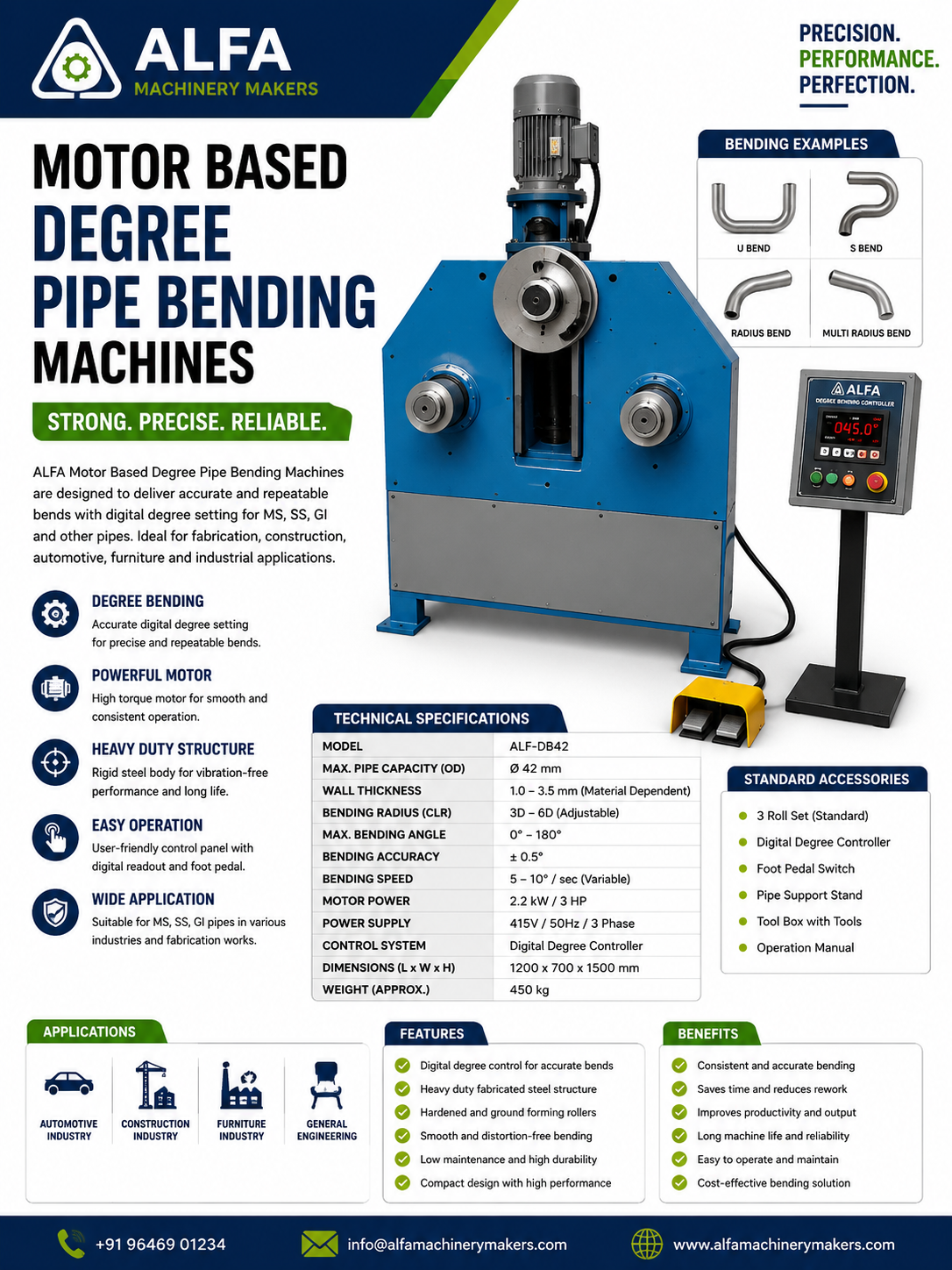

Motor Based Degree Pipe Bending Machines
Motor Based Degree Pipe Bending Machines - Image 2

Motor Based Degree Pipe Bending Machines

Category:

Description

Model Name ROUND PIPE SQUARE PIPE ROUND BAR SQUARE BAR MOTOR MOTO RISE HYDRAULIC CYLINDER NOS
PMBM 1.5”-2 MM OD 38*2mm 38*38*2mm 15mm 15*15mm 2 HP YES NO NO
PMBM 2”-3 MM OD 50*3mm 50*50*3mm 18mm 18mm 3 HP YES NO NO
PHBM 2”- 3 MM OD 50*3mm 50*50*3mm 18mm 18mm 3 HP NO YES 1 NOS
PHBM 2”-5 MM OD 50*5mm 50*50*3mm 20mm 20mm 5 HP NO YES 1 NOS
PHBM 2.5”-5 MM OD 63*5mm 63*63*5mm 25mm 25mm 5 HP NO YES 1 NOS
PHBM 3”-5 MM OD 76*5mm 76*76*5mm 28mm 28mm 7.5 HP NO YES 1 NOS
PHCBM 2”-3 MM OD 50*3mm 50*50*3mm 18mm 18mm 3 HP NO YES 3 NOS
PHCBM 2”-5 MM OD 50 5mm 50*50*3mm 20mm 20mm 5 HP NO YES 3 NOS
PHCBM 2.5”-5 MM OD 63*5mm 63*63*5mm 25mm 25mm 5 HP NO YES 3 NOS
PHCBM 3”-5 MM OD 76 5mm 76*76*5mm 28mm 28mm 7.5 HP NO YES 3 NOS
PHCBM3.5”- 5 MM OD 90*5mm 90*90*5mm 35mm 35mm 7.5 HP NO YES 3 NOS
PHCBM 4”-5 MM OD 114*5mm 110*110*5mm 40mm 40mm 10 HP NO YES 3 NOS
