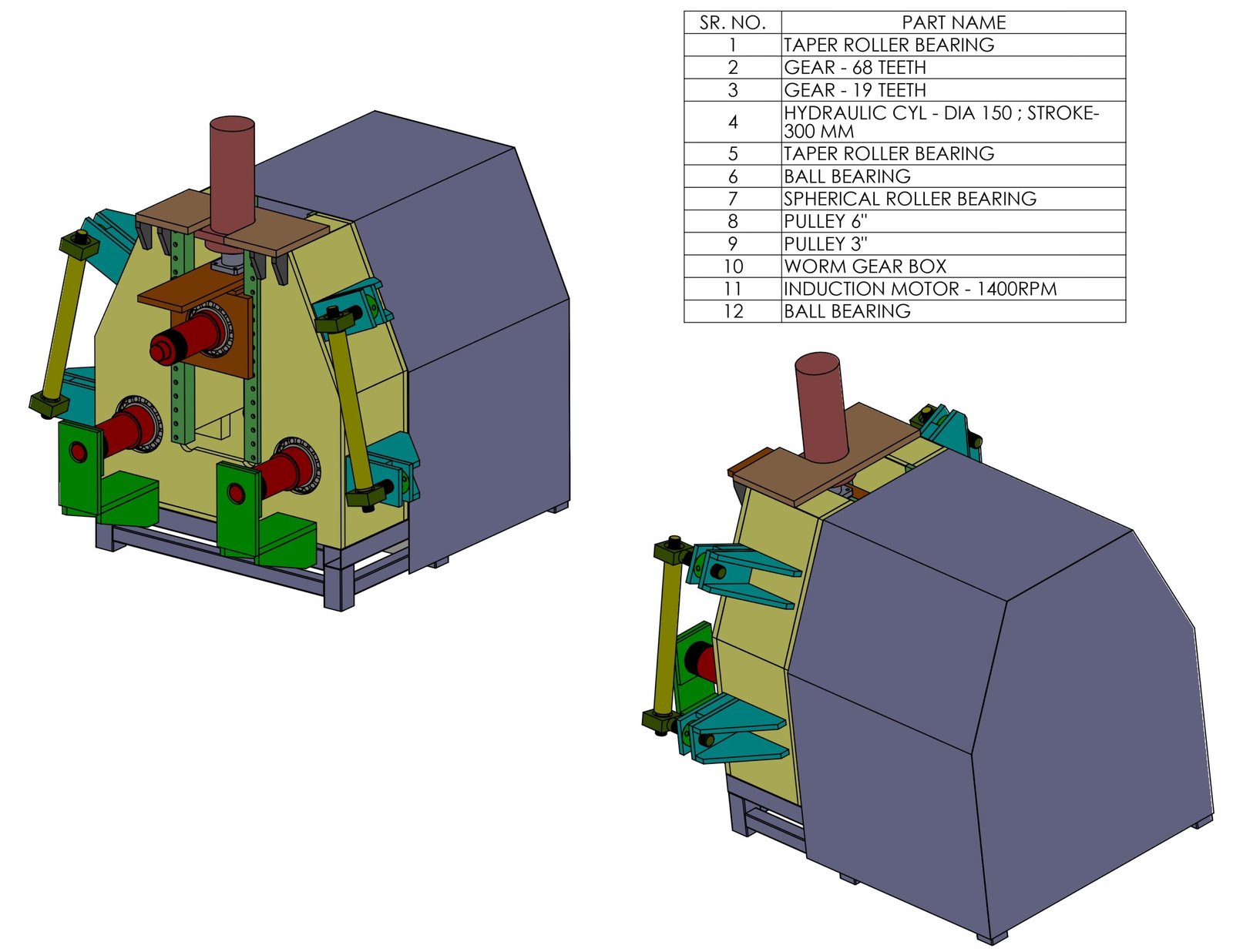

Section Bending Machine

Section Bending Machine

We provide high capacity section bending machine that is best for all your industrial purposes. Our machine comes with a varied range of bending materials like aluminium steel, carbon steel etc. Our machine comes with two style operations i.e electrical and manual. It ensures complete accuracy with minimal error.

Category:

Description

Model no PRBM-300 PHRBM-300 PRBM-400 PHRBM-400 PHDRBM-400 PHRBM-500 PHRBM-600 PHRBM-700
Round pipe OD50*3mm OD50*3mm OD75*5mm OD75*5mm OD75*5mm OD90*5mm OD100*5mm OD120*5mm
Square pipe 50*50*3mm 50*50*3mm 75*75*5mm 75*75*5mm 75*75*5mm 90*90*5mm 100*100*5mm 100*100*5mm
Rectanguler pipe 60*40*3mm 60*40*3mm 80*60*5mm 80*60*5mm 80*60*5mm 90*70*5mm 100*70*5mm 110*80*5mm
Angle 50*5mm 50*5mm 50*6mm 50*6mm 50*6mm 75*7mm 90*8mm 100*10mm
T-Angle 100*10mm 100*10mm 100*12mm 100*12mm 100*12mm 150*14mm 180*16mm 200*20mm
Flat Bar 50*10mm 50*10mm 60*10mm 60*10mm 60*10mm 90*10mm 100*20mm 100*20mm
Channel 100*50*5mm 100*50*5mm 100*50*6mm 100*50*6mm 100*50*6mm 150*75*5mm 180*90*8mm 200*100*10mm
Round bar 25mm 25mm 30mm 30mm 30mm 35mm 40mm 45mm
Square bar 25*25mm 25*25mm 30*30mm 30*30mm 30*30mm 35*35mm 40*40mm 45*45mm
Motor 3 HP 3 HP & 1 HP 5 HP 5 HP & 1 HP 7.5 HP & 3 HP 7.5 HP & 2 HP 10 HP & 3 HP 10 & 5 HP
Mechinal jack YES NO YES NO NO NO NO NO
Hydrualic Cylinder NO YES NO YES YES YES YES YES
Hrozintal & Vertical YES YES YES YES NO NO NO NO
