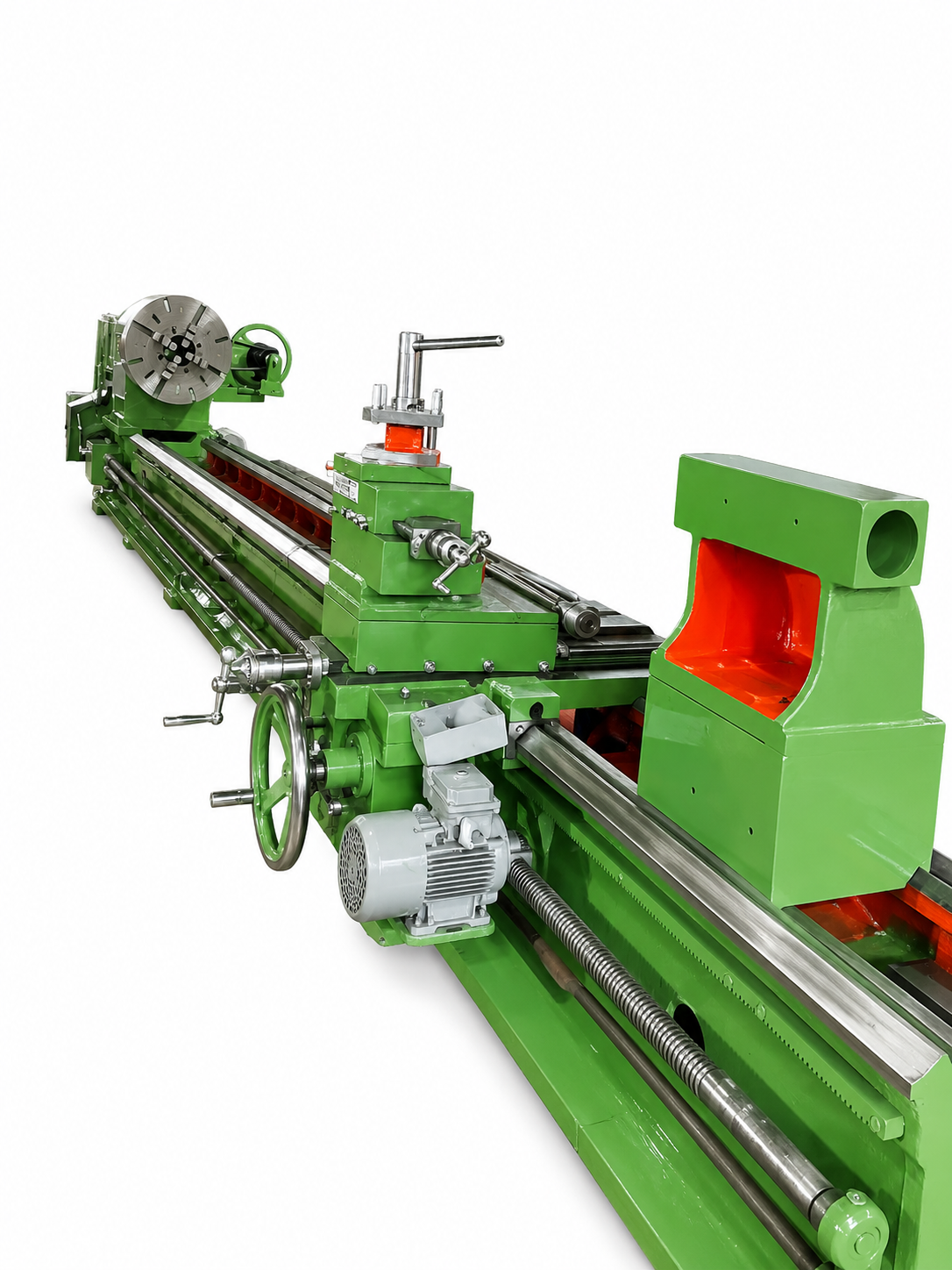

Heavy Duty Cone Pulley Type Lathe Machine

The Heavy Duty Cone Pulley Type Lathe Machine is a durable and reliable conventional lathe designed for heavy machining applications. It features a robust cast iron bed, precision-ground guideways, and a cone pulley drive system that provides smooth power transmission and multiple spindle speed options. This machine is ideal for turning, facing, threading, drilling, boring, knurling, and taper turning operations on medium to heavy workpieces. It is widely used in machine shops, fabrication units, maintenance workshops, educational institutes, and general engineering industries for accurate and efficient metalworking.

Description

Technical Specification	AMM-230	AMM-232	AMM-336	AMM-340	AMM-448	AMM-460
Bed Length	22 FT	24 FT	30 FT	36 FT	40 FT	40 FT
Width of Bed	30″ (750 MM)	32″ (800 MM)	36″ (900 MM)	40″ (1000 MM)	48″ (1200 MM)	60″ (1500 MM)
Height of Center	28″ (700 MM)	30″ (750 MM)	34″ (850 MM)	38″ (950 MM)	46″ (1150 MM)	55″ (1375 MM)
Spindle Bore	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)	4⅛” (105 MM)
Swing in Gap	80″ (2000 MM)	86″ (2150 MM)	92″ (2300 MM)	101″ (2525 MM)	116″ (2900 MM)	142″ (3550 MM)
Swing over Bed	56″ (1400 MM)	60″ (1500 MM)	68″ (1700 MM)	76″ (1900 MM)	92″ (2300 MM)	110″ (2750 MM)
No. of Spindle Speed	6	6	6	6	6	6
Admit Between Centre	192″ (4800 MM)	216″ (5400 MM)	282″ (7050 MM)	353″ (8825 MM)	400″ (10000 MM)	381″ (9525 MM)
Leading Screw Dia	2¾” (70 MM)	3″ (75 MM)	3″ (75 MM)	3½” (88 MM)	4½” (112 MM)	5″ (125 MM)
H.P Required	10 H.P	15 H.P	25 H.P	25 H.P	30 H.P	40 H.P
