Product Description

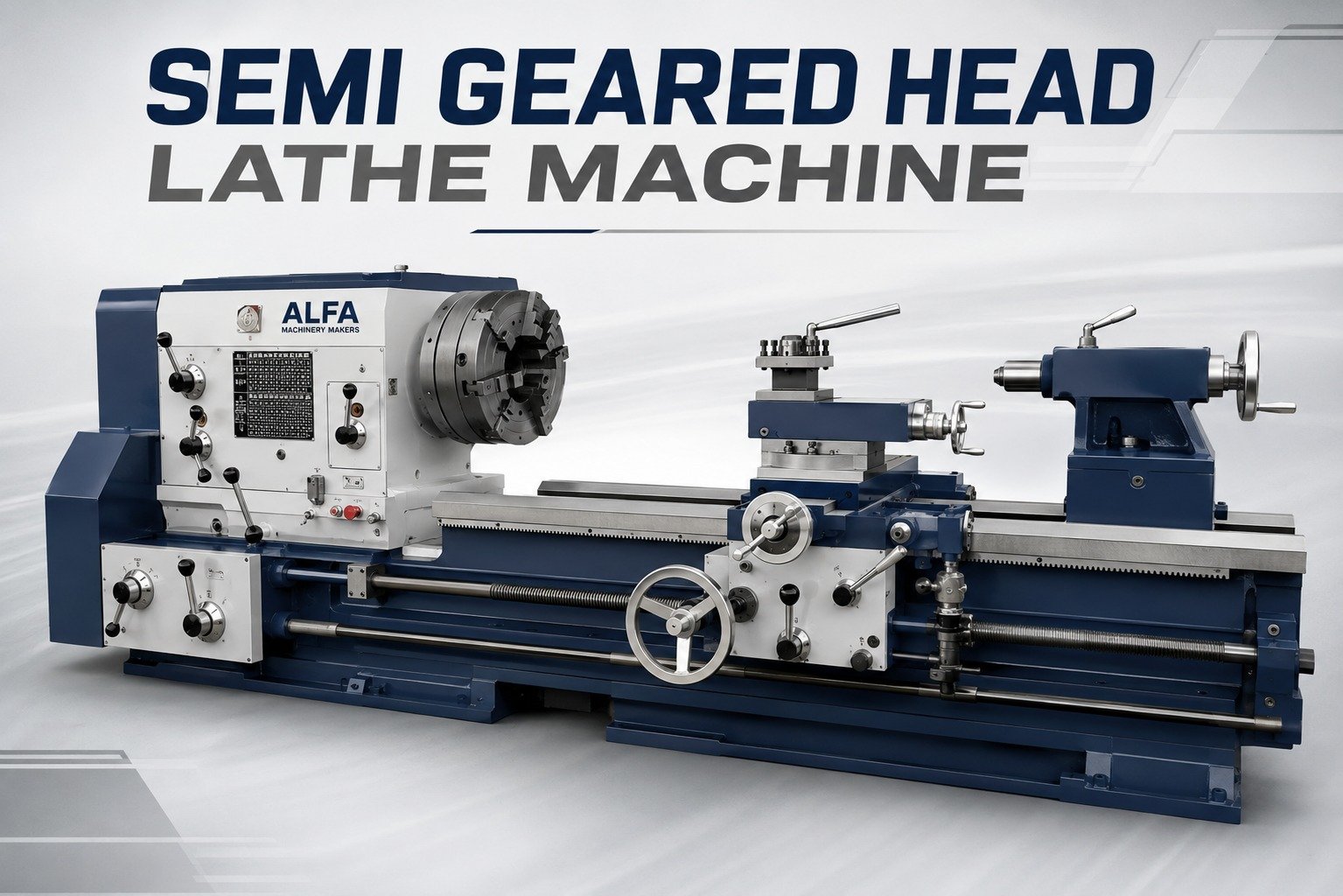

The Semi Geared Head Lathe Machine is a robust and versatile metalworking machine designed for precision turning, facing, threading, drilling, boring, taper turning, and other machining operations. It combines the simplicity of a belt-driven lathe with the power and efficiency of a geared headstock, making it an ideal choice for machine shops, tool rooms, educational institutes, fabrication industries, and maintenance workshops.
Manufactured using premium-grade cast iron, the machine offers excellent rigidity, vibration-free performance, and long service life. The hardened and precision-ground bed ensures high accuracy and consistent machining results. The headstock is fitted with high-quality gears running in an oil bath, providing smooth speed changes and reliable performance even under heavy-duty operations.
The Semi Geared Head Lathe Machine is suitable for machining steel, cast iron, aluminum, brass, copper, and various engineering materials with superior dimensional accuracy and surface finish.
Key Features
- Heavy-duty cast iron construction
- Hardened & precision-ground bed ways
- Oil-bath lubricated geared headstock
- Wide range of spindle speeds
- High machining accuracy
- Low vibration and noise
- Easy maintenance
- Smooth carriage movement
- Suitable for heavy and precision jobs
- Long operational life
Technical Parameters
| Model | AMM-614 | AMM-814 | AMM-817 | AMM-1017 | AMM-1217 | AMM-1617 |
|---|---|---|---|---|---|---|
| Bed Length | 6 Feet | 8 Feet | 8 Feet | 10 Feet | 12 Feet | 12 Feet |
| Width of Bed | 350 mm | 350 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Height of Center | 300 mm | 300 mm | 375 mm | 375 mm | 375 mm | 375 mm |
| Swing Over Bed | 600 mm | 600 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Spindle Bore | 75 mm | 75 mm | 80 mm / 120 mm | 80 mm / 120 mm | 80 mm / 120 mm | 80 mm / 120 mm |
| Admit Between Centre | 1000 mm | 1500 mm | 1350 mm | 1850 mm | 2400 mm | 3500 mm |
| Spindle Speed | 3 + 3 = 6 | 3 + 3 = 6 | 3 + 3 = 6 | 3 + 3 = 6 | 3 + 3 = 6 | 3 + 3 = 6 |
Models
- AMM-614
- AMM-814
- AMM-817
- AMM-1017
- AMM-1217
- AMM-1617
